Price 4 INR/ Piece

Get a Price/Quote

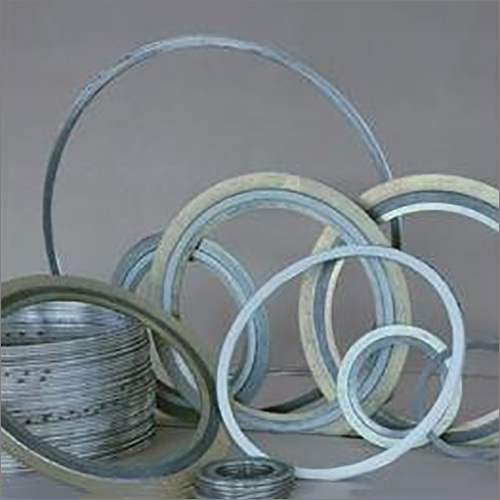

Wound Spiral Gasket Specification

Structure
Spiral Wound with metallic and filler material

Usage
Industrial

Material
Carbon Steel

Size
600 mm

Pressure
Up to 250 Bar

Media
Gas, Oil, Steam

Product Type
Wound Spiral Gasket

Working Temperature
-200C to +550C

Port Size
Customizable as per requirement

Surface
Metallic Finish

Shape
Round

Application
Pipeline Flanges, Heat Exchangers, Valve Covers

Inner Ring
Available in Carbon Steel, Stainless Steel

Gasket Class
150, 300, 600, 900, 1500, 2500

Thickness
3.2 mm to 7.2 mm

Sealing Element
Graphite or PTFE filler

Standard
ASME B16.20, DIN, JIS

Outer Ring
Available in Carbon Steel, Stainless Steel

Leakage Rate
1.0x103 mbar.l/s

Corrosion Resistance
Excellent

Color Code
As per international standard marking

About Wound Spiral Gasket

Experience superlative sealing with our prodigious Wound Spiral Gasket, expertly crafted for first-rate industrial performance. This trending gasket is an unbeatable deal for pipeline flanges, heat exchangers, and valve covers, boasting a fresh metallic finish and available in sizes up to 600 mm. Choose from Carbon Steel or Stainless Steel for both inner and outer rings, meeting ASME B16.20, DIN, and JIS standards. With world-class corrosion resistance, customizable port sizes, and a flexible pressure range up to 250 Bar, this gasket ensures reliable sealing for gas, oil, and steam applications. The structure combines metallic and high-grade Graphite or PTFE fillers, with color-coded marking as per international standards. Perfect for manufacturers, suppliers, traders, and wholesalers across India.

Exceptional Industrial Use & Key Features

The Wound Spiral Gasket excels in heavy-duty pipeline applications, designed specifically for industrial use in flanges, heat exchangers, and valve covers. Its spiral wound structure with Graphite or PTFE filler delivers robust sealing and flexibility across a vast temperature range. Enhanced with premium Carbon Steel or Stainless Steel rings, this gasket offers first-rate corrosion resistance and a fresh, metallic finish. Internationally recognized color coding further ensures suitability and safety in varied industrial environments.

Reliable Supply, Expert Packaging & Export Reach

We guarantee quick dispatch and worry-free delivery of your Wound Spiral Gaskets, with each piece securely packaged for maximum protection during transit. Our offer extends to both the domestic market and global export destinations, supported by a consistent supply ability. These gaskets are available for immediate shipment in bulk or custom orders, ensuring reliability for manufacturers, suppliers, and traders seeking excellence in sealing solutions.

FAQ's of Wound Spiral Gasket:

Q: How does the spiral wound structure benefit industrial sealing applications?

A: The spiral wound structure combines metallic and filler materials, such as Graphite or PTFE, providing superior resilience and adaptability. This design ensures effective sealing under fluctuating pressures and temperatures, making it ideal for demanding industrial environments like pipelines and heat exchangers.

Q: What materials are used for the inner and outer rings, and why are they important?

A: Our Wound Spiral Gaskets feature inner and outer rings made from either Carbon Steel or Stainless Steel. These materials offer excellent strength and corrosion resistance, ensuring long-term durability and performance even in aggressive media like gas, oil, and steam.

Q: When should I choose a gasket with a Graphite versus a PTFE filler?

A: Graphite filler is recommended for applications requiring high temperature and pressure resistance, while PTFE is ideal for chemical compatibility and lower temperature environments. The selection depends on the specific requirements of your process media and operating conditions.

Q: Where can these gaskets be used within industrial facilities?

A: These gaskets are commonly used in pipeline flanges, heat exchangers, and valve covers, as well as in other systems requiring secure seals against leakage in industrial plants, refineries, and power stations.

Q: What standards and class ratings do your gaskets comply with?

A: Our Wound Spiral Gaskets conform to ASME B16.20, DIN, and JIS standards, and are available in multiple class ratings including 150, 300, 600, 900, 1500, and 2500, ensuring compatibility with a variety of equipment specifications and international requirements.
