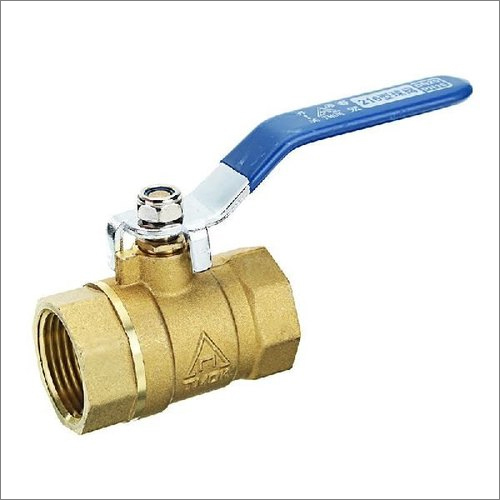

Reduced Port Ball Valve

Price 500 INR/ Piece

Get a Price/Quote

MOQ : 200 Pieces

Reduced Port Ball Valve Specification

Caliber
Reduced Bore

Pressure
Class 150 / PN16 / 10K

Connection
Screwed, Flanged, Socket Weld

Structure
Ball Valve

Channels
2 Way

Usage
Industrial

Material
Other

Power
Manual

Media
Water, Oil, Gas, Air, Steam

Size
15mm - 1000mm

Temperature of Media
-20C to 180C

Product Type
Ball Valve

Port Size
1/2 to 6

Flange
ANSI, DIN, JIS Standard

Color
Silver

Finish
Polished

Application
Industrial, Chemical, Oil & Gas, Water Treatment

Locking Device
Available on request

Operation
Quarter-turn

Corrosion Resistance
Yes

Seat Material
PTFE / Teflon

Testing Standard
API 598, EN 12266

Handle Type
Lever / Gear Operated

Leakage Class
Class VI

Stem Material
Stainless Steel

Body Design
3 Piece / 2 Piece / 1 Piece

End Connection
Threaded, Flanged, Socket Weld

Reduced Port Ball Valve Trade Information

Minimum Order Quantity
200 Pieces

FOB Port
Delhi

Payment Terms
Cash in Advance (CID)

Supply Ability
200 Pieces Per Month

Delivery Time
7 Days

Main Export Market(s)
Asia

Main Domestic Market
North India

About Reduced Port Ball Valve

A range of reduced bore, flanged, free floating (seat supported) ball valves, incorporating mounting flanges to BS EN ISO 5211, featuring soft, metal and carbon seated designs.

Reduced bore body, flanged construction in carbon steel, stainless steel and special alloys Flexing soft seat design for superior shut-off across a range of pressures with minimum operating torque.Fire test certified. All sizes and pressure ratings are covered by approved certification.

Features & Benefits:

Investment cast body construction.

Blow out proof stem

Anti static device.

Two-piece split body design

Double body sealing provided (O-ring, Gasket )

Fire safe in compliance with API 607

Direct Mounting of actuator for sizes 1 inch and above

Unique Gland sealing arrangement

Bearing provided on top to minimize O-ring wear/tear.

Versatile Body Designs for Flexible Installation

Choose from 3-piece, 2-piece, or 1-piece body designs when selecting our reduced port ball valve. This flexibility allows for seamless integration into existing pipelines, whether you require easier maintenance, compactness, or cost-effectiveness.

Reliable Performance Across Demanding Industries

Engineered for use in industrial, chemical, oil & gas, and water treatment applications, these ball valves handle media such as water, oil, gas, air, and steam. Their construction supports a wide temperature range from -20C to 180C for robust performance.

Strict Adherence to International Standards

Every reduced port ball valve undergoes stringent testing in compliance with API 598 and EN 12266 standards. Supported flange options meet ANSI, DIN, and JIS specifications, ensuring safety and compatibility in diverse industrial settings.

FAQ's of Reduced Port Ball Valve:

Q: How does a reduced port ball valve differ from a full port valve?

A: A reduced port ball valve, also known as a standard bore valve, features an internal bore smaller than the pipe diameter. This design restricts flow slightly, which can help in certain applications by reducing cost and weight, compared to a full port valve where the bore matches the pipeline diameter.

Q: What media can this ball valve be used with, and in which industries?

A: This valve is suitable for handling water, oil, gas, air, and steam, and is commonly used in industrial, chemical, oil & gas, and water treatment processes. Its corrosion-resistant materials make it reliable for challenging or aggressive fluids.

Q: When is it beneficial to choose a 3-piece design over a 1-piece or 2-piece ball valve?

A: A 3-piece ball valve is ideal when frequent cleaning, inspection, or maintenance is required. The body can be easily disassembled without removing the valve from the pipeline, making it suitable for applications where downtime or contamination must be minimized.

Q: Where can these valves be installed, and what are the available connection types?

A: These ball valves can be installed in various pipeline systems using threaded, flanged, or socket weld end connections. Supported flange standards include ANSI, DIN, and JIS, offering compatibility with international piping systems.

Q: What testing standards are applied to ensure quality and performance?

A: Each valve undergoes rigorous testing according to API 598 and EN 12266 requirements. These tests verify the valve's ability to provide a leak-tight shutoff (Class VI) and confirm structural integrity under pressure.

Q: How does the locking device feature benefit users?

A: An optional locking device secures the valve handle in the desired position, which is essential for safety in processes that must not be interrupted or accidentally altered, preventing unauthorized or unintentional valve operation.

Q: What is the recommended process for operating the valve, and what are the handle options?

A: These valves are designed for quarter-turn operation, enabling rapid open or close movement using either a lever or gear-operated handle. Manual power ensures ease of use and straightforward maintenance, with the handle type chosen based on valve size and user preference.
